LK L Copper coil 800mm with flange

LK L Copper coil 800mm with flange
  Zoom
 LK L Copper coil 800mm with flangeLK L Copper coil 800mm with flange
Our Price:  £835.00(Inc. 20% VAT)(£695.83 Exc. VAT)


Brand:  Akvaterm | Jaspi

Weight:  24 kg

Availability:



In stock

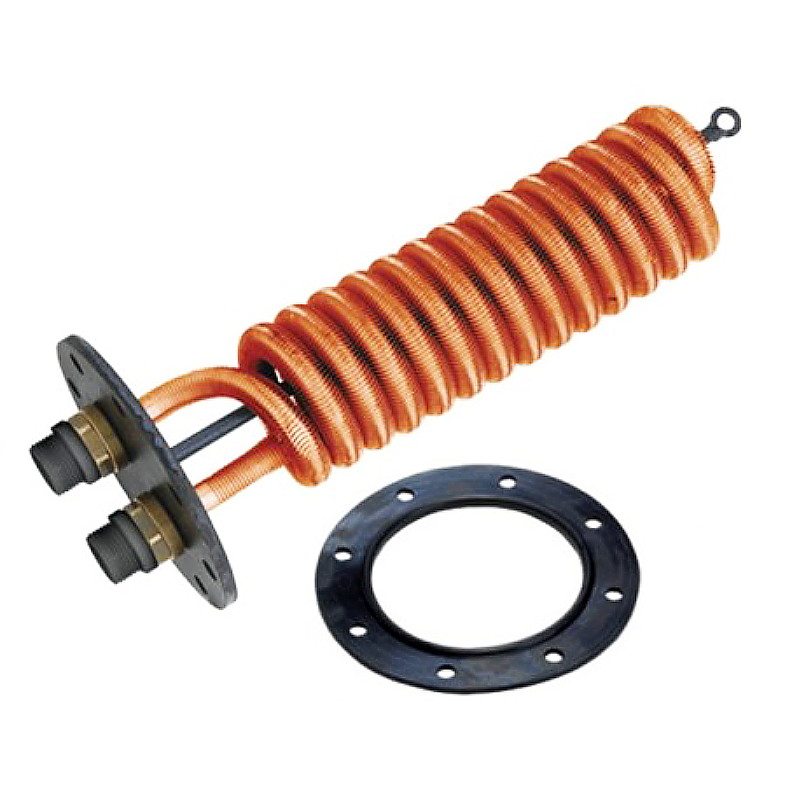

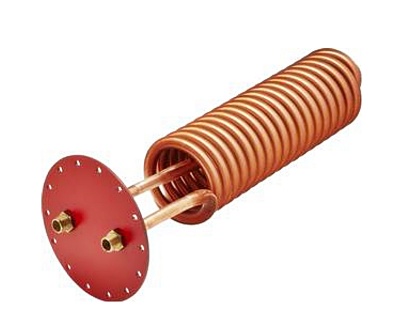

ACCUMULATOR COPPER COIL WITH FLANGE

LK L coil will fit to Akvaterm & Jaspi accumulators above 1000L.

It is a reliable finned copper coil / heat exchanger for domestic hot water or indirect heat sources like heat pumps, wood burners or solar systems. This large 1" coil is used where the hot water production needs to be very high or where the accumulator temperature is lower.

Pipe connection G1" and the coil installation length is 800mm. Diameter 180mm.

Effective surface area 4.9 m².

Recommended flow is 40-54 L/minute, maximum flow 81L/minute.

This coil is delivered with either 200 or 300mm tank flange and a rubber gasket.
