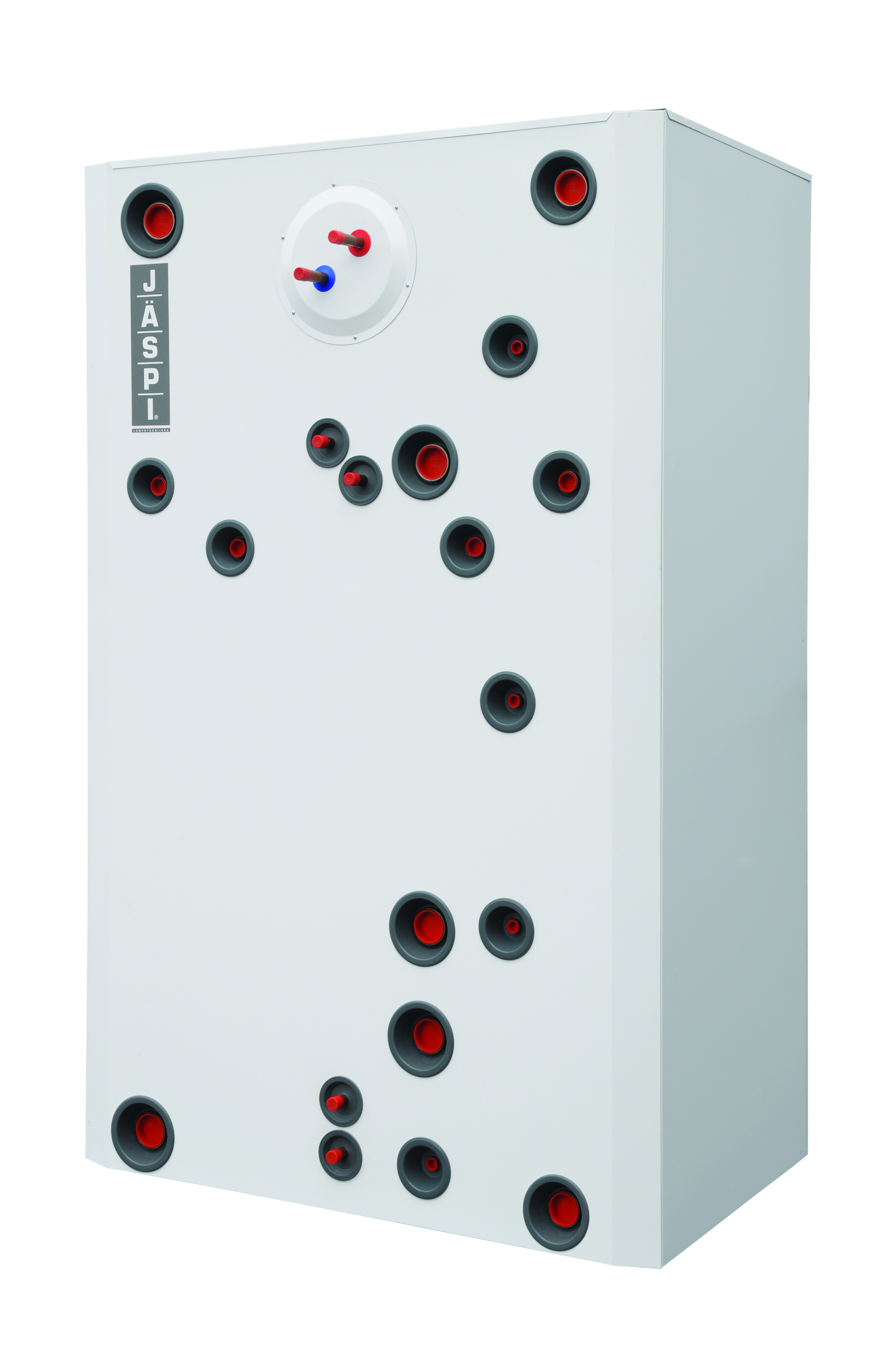

Jaspi Oval Hybrid - For all energy sources
Setting the new standards for thermal storage.
Jaspi Oval Hybrid is a highly efficient narrow design thermal store designed for easy installation.
It comes with three indirect coils as standard, two for domestic hot water and one for solar or other indirect heat source, for example a wood boiler or a heat pump.
Narrow design allows the store to pass through most of the doors and as all the connections are on the front and top of the unit, it can be placed close to the walls or corners.
Internal baffle plate ensures efficient heat layering, especially useful with heat pump and solar use.
Multiple connections with 'leak detect' sleeves will shorten the installation time and allows system expansion in the future.
These stores can also be fitted with up to 3 immersion heaters for heating back up, cheaper tariff charging or solar PV feed.
High density closed cell polyurethane insulation is fixed onto the tank in high heat & pressure mould, a technique which has not been used previously in the tanks of this size.
This ensures a uniform and best insulation bonding with the tank surface without any gaps. To finish off, the tank is fitted with strong, painted metal outer skin.
- Narrow, square design - Height 1730mm x Width 1260mm x Depth 780mm (+ coil tail ends 30-40mm)
- Three coils fitted as standard
- Internal baffle plate
- Multiple heating & immersion connections
- 'Leak detect' coupling sleeves
- Heat moulded insulation
- Ultra low heat loss
