Jaspi Oval 2400 Narrow access

Jaspi Oval 2400 Narrow access
  Zoom
Jaspi Oval 2400 Narrow accessJaspi Oval 2400 Narrow accessJaspi Oval 2400 Narrow access
Our Price:  £3,766.00(Inc. 20% VAT)(£3,138.33 Exc. VAT)
Solar coil:
Oval 2400 Installation pack:

Brand:  Jaspi

Weight:  525kg

Availability:



In stock, factory direct delivery

Jaspi


This large Oval thermal storage tank is designed to maximise the store size with the smallest footprint possible. It is only 780 mm wide so can fit through most doors and reserve less space than an equivalent round cylinder.

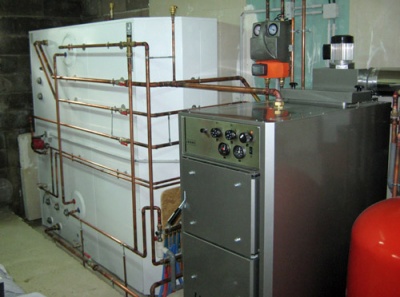

The narrow footprint makes it ideal for heating system renovations where the old boiler room needs to accommodate a new thermal store.

Despite the narrow design, Oval thermal store is energy efficient with it's high-density closed cell polyurethane insulation and a steel outer surface for truly impressive thermal qualities. The non-removable insulation is heat-fixed onto the steel surface of the store eliminating the air gaps where the heat could leak out.







More features

Oval 2400 can be connected up to 6 separate heat sources and can have 3 indirect coils for hot water, heat pumps or solar. In district heating applications, up to 4 separate heating circuits can be supplied from a single tank making the installation easier, cheaper and more flexible than any other thermal storage tank on the market.

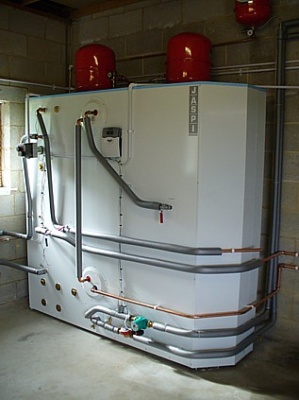

As all the connections are on the front and top of the unit, Oval can be placed against the wall or to confined spaces. This gives an advantage over round tanks which need much more room for the same store volume.
All the couplings are on the surface of the tank making the installation work fast and secure.

Oval tank is supplied with 22mm top and middle coils as standard. These coils are 6.5 Metre long coiled copper with a power rating of 78kW each.
An additional solar can also be fitted to the lowest part of the store. It is normally fitted at the factory but can also be retrofitted later on.

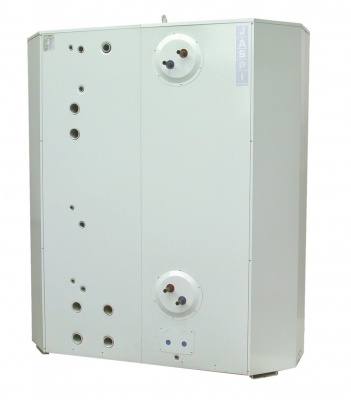

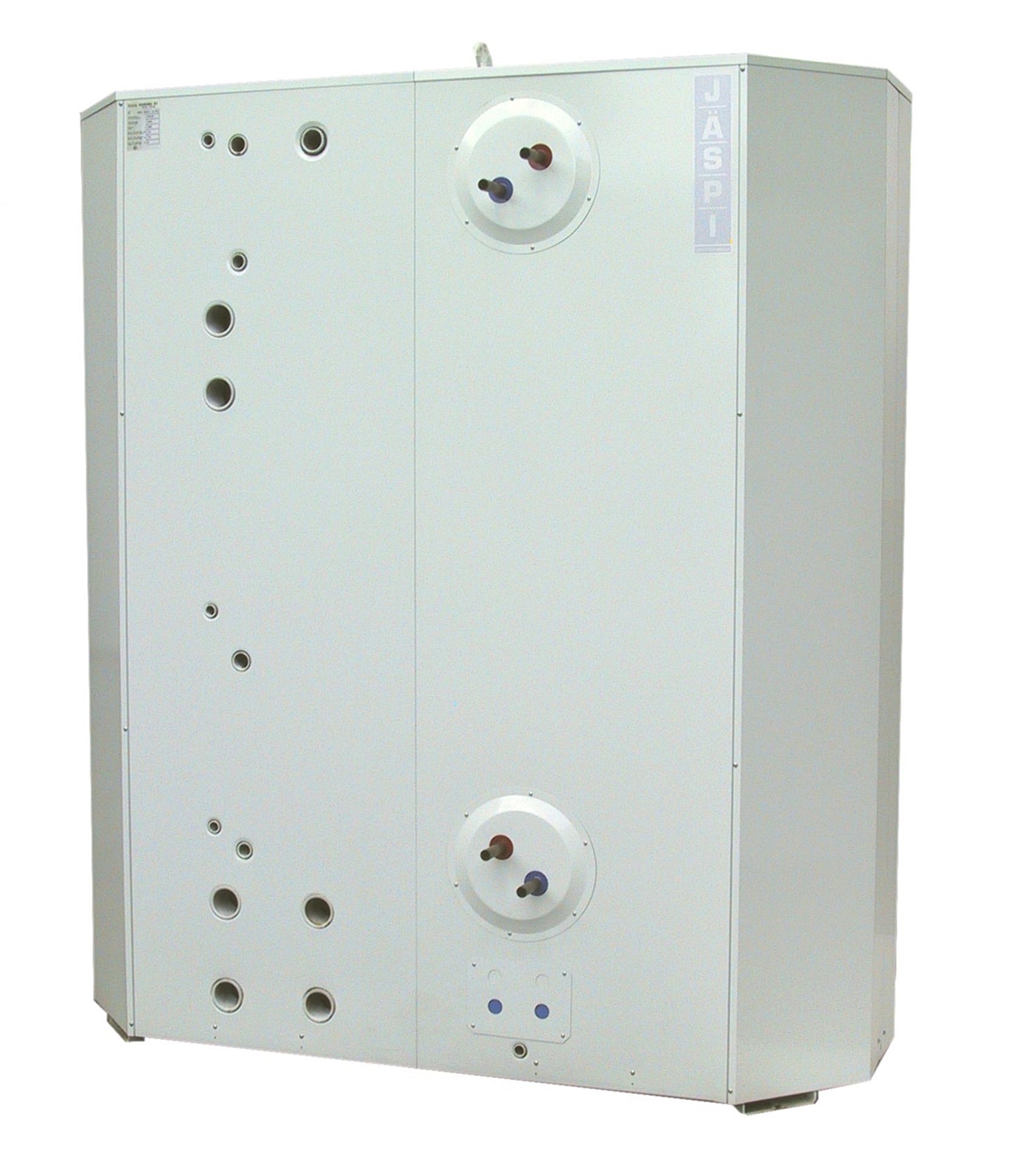

Retrofitting this coil requires the lower DHW coil to be removed to gain the access to the solar coil couplings. In the picture the solar coil blanking plate can be seen below the lower DHW coil.

Jaspi Oval 2400 can be equipped with up to seven immersion heaters. These heaters are used for heating back-up, heat dump from the solar PV panels / wind turbines or frost protection.
Our immersion heaters have 3 heating elements each, for example the 3kW version has three 1kW elements. This greatly improves the heater reliability and flexibility.
They also have an adjustable thermostat, main switch, heating indicator and overheating protection.
See the accessories page for more information.
